We will now define the trigger that uses the Execute Lua Script action to call, or "fire", the subtrigger.
To define the example trigger, follow these
steps:
- From Workbench left pane, select the
Projects icon.
The Projects window appears. - Select or create the MyProject
project if needed.
The project tab appears. - Select the New button from the
bottom of the project tab.
- In the Name box, type a name for
the trigger. We will use the name
MyNewTrigger.

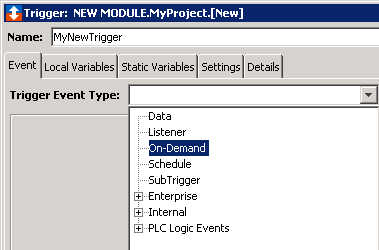

- From the Event tab, select the
Trigger Event Type down-arrow, and
then select On-Demand.

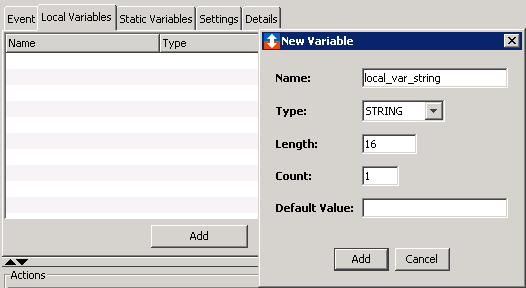

- Add a Local Variable local_var_string
variable with Type of
STRING and Length of
16.
This will be used to contain the subtrigger output.
- From the Actions section, select
Add.
The New Action window appears.
- Expand the Lua Scripting category,
select Execute Lua Script, and then
select Add.

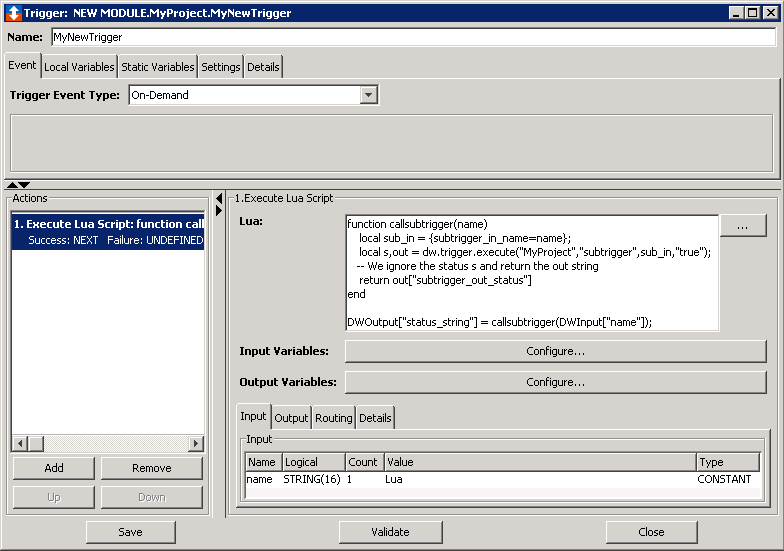

- In the Lua field of the
Execute Lua Script action, enter this Lua
script:
function callsubtrigger(name) local sub_in = {subtrigger_in_name=name}; local s,out = dw.trigger.execute("MyProject","subtrigger",sub_in,"true"); -- We ignore the status s and return the out string return out["subtrigger_out_status"] end DWOutput["status_string"] = callsubtrigger(DWInput["name"]);
This Lua script contains one function and one executable line.
The script is processed from the top down, but the code in the function is not executed until the function is called.
In this example, we call the function with a name input passed as an input variable from the trigger action and we return a status_string output passed as an output variable back to the trigger action.
The name input is given to the function, which will then convert it to a proper subtrigger input array sub_in to be passed to the subtrigger.
The subtrigger will return an output array out and we will use the subtrigger_out_status value from that array. We use that value as the function output.
- For the Input tab, map
Lua for the name
variable.

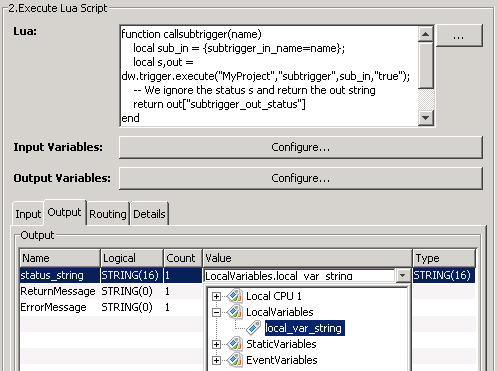

- For the Output tab, map
LocalVariables.local_var_string for
the status_string variable.
- Select Validate to validate the
trigger and action parameters. If there are no error
reported, select Save.
If there are errors reported, correct the errors, then select Validate again and then select Save.
