An Azure S&F queue is a storage mechanism for a Azure S&F profile, used to store data that cannot be sent to the Azure. An Azure S&F queue is created when data from a trigger action needs to be stored. Additional data from trigger actions will be stored until the Azure connection can be re-established. When the Azure connection is re-established, the data in the S&F queue is sent through to Azure.

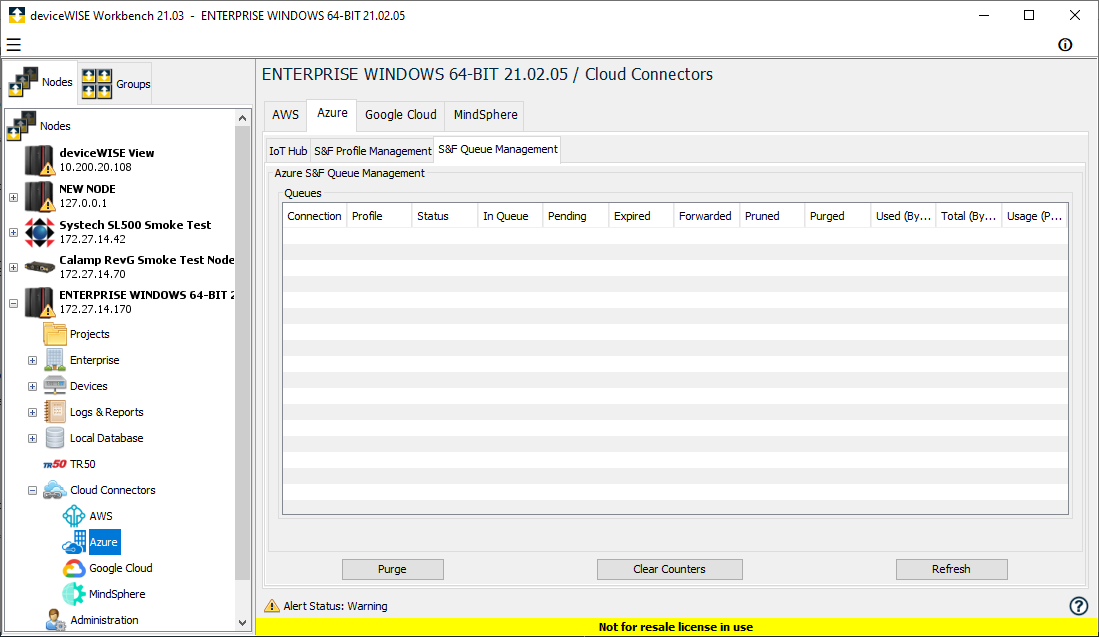

The Azure S&F Queue Management tab provides a list of all the S&F queues. S&F queues that were created but have forwarded all data will remain in the table. If no queues are displayed in the table, then no data has been stored.
Azure S&F Queue Parameters
| Parameter | Description |
|---|---|
| Connection | The Azure connection that is using the S&F queue. |
| Profile | The S&F profile settings used by the S&F queue. |
| Status | The current S&F Status. Azure S&F queues will store data when the S&F Status is Standby, Ready to store, Ready to store - forced, Storing, Storing - forced, or Forwarding. |
| In Queue | The number of messages currently in the S&F queue. |
| Pending | The number of messages currently being sent to Azure. |
| Expired | The number of messages expired by the TTL parameter of the associated S&F profile. |
| Forwarded | The number of messages sent to Azure that were in the S&F queue. |
| Pruned | The number of messages removed by pruning. |
| Purged | The number of messages purged. |
| Used (Bytes) | The current size of data in the S&F queue. |
| Total (Bytes) | The total size allowed in the S&F queue. |
Purge
Purging is an unrecoverable action that removes all data
that is not pending within the S&F queue. While purging is in progress, no new items are allowed
to enter the S&F queue.
Button descriptions
|
Button |
Description |
|---|---|
| Purge | See above description. |
| Clear Counters | Resets the Expired, Forwarded, Pruned and Purged counters. |
| Refresh | Used to refresh all values on the tab. |
