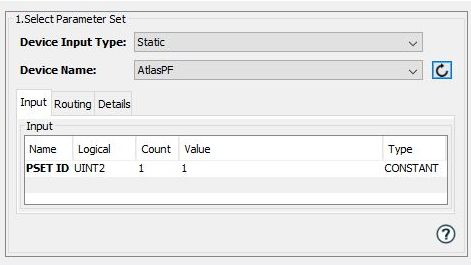

Select Parameter Set

The Select Parameter Set action selects the active parameter set on the Atlas Copco controller. This is performed by sending a MID0018 command to the Atlas Copco controller.

Parameters

Parameter Description
Device Input Type The method to supply the device name to the action. The options are:
  • Static - select the device name from the Device Name parameter
  • Dynamic - enter the device name in the Device Name input variable. This allows the device name to be passed to the action during trigger execution.
Device Name Select an Atlas Copco device.

Displayed when the Static option is selected in the Device Input Type parameter.

This list will contain both Power Focus type devices and Power MACS type devices.

Input tab

Parameter Description
Device Name Displayed when the Dynamic option is selected in the Device Input Type parameter.

This variable will hold the name of the device where the select active parameter set command will be sent.

PSET ID The parameter set ID (PSET ID) to set as the active parameter set.
