Enable Disable a Tool

The Enable/Disable a Tool action sends an enable or disable command to a Estic controller. This is performed by sending either a MID0043 command to Enable a tool on the Estic controller or a MID0042 Open Protocol command to Disable a tool on the Estic controller.
It may become necessary at some point to Enable or Disable a tool. For example the tool may need to be disabled while a Parameter Set is changed. The tool can then be enabled once the PSET has been changed so that a rundown can be performed.

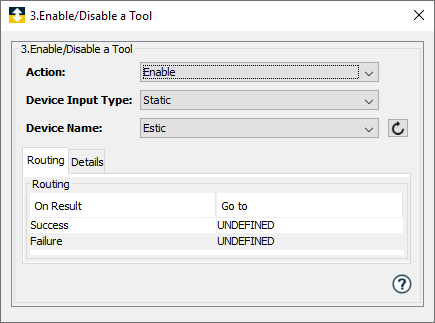

Parameters

Parameter	Description
Action	Select Enable or Disable.
Device Input Type	The method to supply the device name to the action. The options are: Static - select the device name from the Device Name parameter Dynamic - enter the device name in the Device Name input variable. This allows the device name to be passed to the action during trigger execution.
Device Name	Select a Estic device. Displayed when the Static option is selected in the Device Input Type parameter. This list will contain Estic device.

Parameter

Description

Action

Select Enable or Disable.

Device Input Type

The method to supply the device name to the action. The options are:

Static - select the device name from the Device Name parameter
Dynamic - enter the device name in the Device Name input variable. This allows the device name to be passed to the action during trigger execution.

Device Name

Select a Estic device.

Displayed when the Static option is selected in the Device Input Type parameter.

This list will contain Estic device.

Input Variables

Parameter	Description
Device Name	Displayed when the Dynamic option is selected in the Device Input Type parameter. This variable will hold the name of the device where the enable or disable command will be sent.
