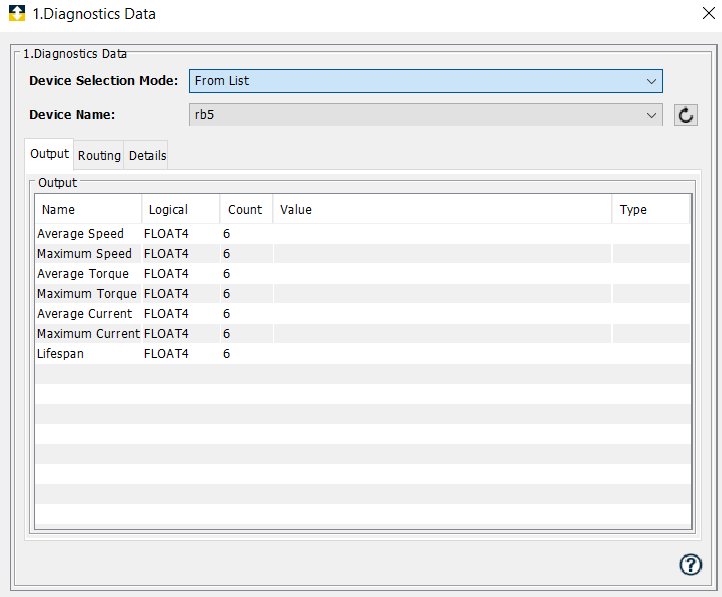

The Diagnostcs Data read the Device Values.
.png)
Input Variables
| Parameter | Description |
|---|---|
| Device Name | This variable will hold the name of the device. |
| Device Selection Mode | Holds the options "Dynamic" and "From List", both ways that the device selection can be made. From List, implies the offer of the Device Name variable. |
Output Variables
| Parameter | Type |
|---|---|
| Average Speed | INT4 |
| Maximum Speed | FLOAT4 |
| Average Torque | FLOAT4 |
| Maximum Torque | FLOAT4 |
| Average Current | FLOAT4 |
| Maximum Current | FLOAT4 |
| Lifespan | FLOAT4 |
