This section shows an example of using the Omron Sysmac
Studio Software to add a rung of a ladder and configure an
unconnected message manager (UCMM) instruction that can
send an event notification to the Omron driver. This
section is not meant to be the authoritative source for
writing ladder logic to send unconnected messages from an
Omron NJ PLC.
Refer to the appropriate Omron documentation for full
details on configuring this device.
- Using the Omron Sysmac Studio, expand the
Programming menu option and select the
Section where the message function
block will be added.
- If this is the first function block, an empty rung
0 will have already been created. If modifying an
existing ladder right-click on the location in the
ladder and select either the Insert Rung
Above or the Insert Rung
Below option to add a new function block to
the ladder.
- Double-click on the "Enter Function Block" text.
Enter a unique name for the rung that was just
added.
- Double-click on the "Enter Type Name" text. Enter
any character into the box and a list of the existing
function block types will be shown.
The Omron driver supports two message types, CIPUCMMSEND and CIPUCMMWRITE.
CIPUCMMSEND parameters
The following steps are performed for the CIPUCMMSEND
function block.

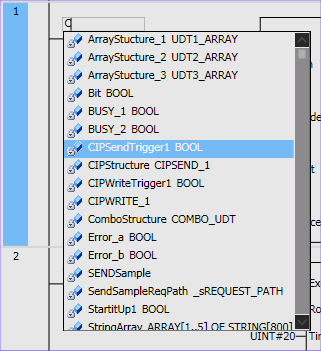

- Right-click while on the line that connects to the
Execute parameter and select the
Insert Input (C) option. This will
display an entry field, enter a character into this
entry field and the list of tags defined in the Global
Variables memory area will be displayed. Select a tag
from this list that will cause the CIPUCMMSEND to
execute.

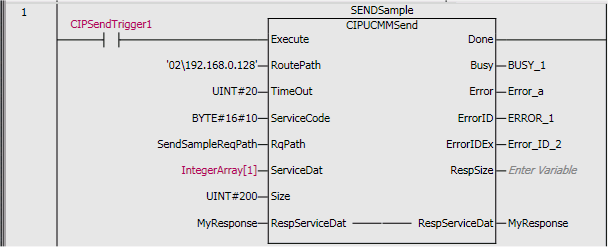

- The following image displays a completed
CIPUCMMSEND function block.
Enter values for the following parameters.
| Parameter | Value |
|---|---|
| RoutePath | The IP address of the node where the driver is running. An Omron CIP Listener device must be defined and started on the node to receive the message. |
| TimeOut | The time in seconds, to allow the CIPUCMMSEND code to complete. |
| ServiceCode | Must equal a hexadecimal value of 10 (0x10). This is the service code associated with a CIPUCMMSEND command. |

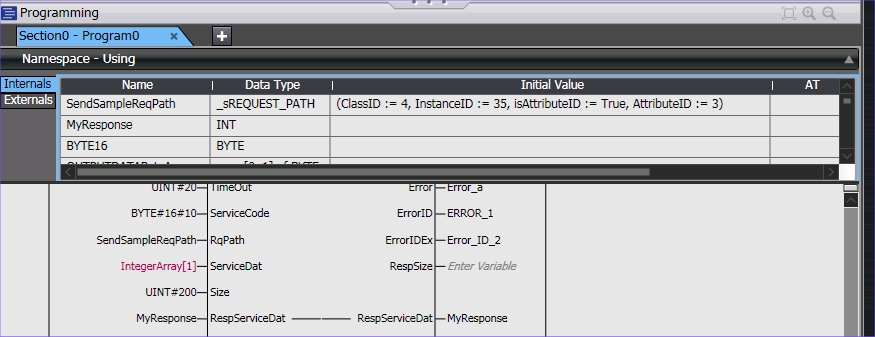

| RqPath | A variable of type _sREQUEST_PATH, with values set for the ClassID, InstanceID, and AttributeID that will match the corresponding values defined in a trigger event on the node. See the image below for how the SendSampleReqPath variable used in the CIPUCMMSEND command is defined. |
| ServiceDat | The tag that contains the data that will be sent to the node with the CIPUCMMSEND. |
| Size | The number of bytes of data that will be sent to the node. |
| RespServiceDat | The tag that will receive the result status from the trigger that is executing on the node. This data sent from the node is defined as a a 1-byte unsigned integer. |
CIPUCMMWRITE parameters
The following steps are performed for the CIPUCMMWRITE
function block.
- Right-click while on the line that connects to the
Execute parameter and select the
Insert Input (C) option. This will
display an entry field, enter a character into this
entry field and the list of tags defined in the Global
Variables memory area will be displayed. Select a tag
from this list that will cause the CIPUCMMWRITE to
execute.

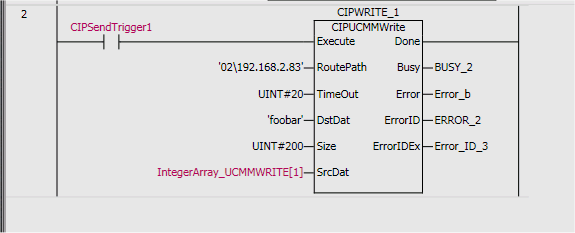

- The following image displays a completed
CIPUCMMWRITE function block.
- Enter values for the following parameters.
Parameter Value RoutePath
The IP address of the node where the driver is running. An Omron CIP Listener device must be defined and started on the node to receive the message.
Timeout
The time in seconds, to allow the CIPUCMMWRITE code to complete.
DstDat
A string that uniquely identifies this CIPUCMMWRITE message on the node. The value of this string can be anything, as long as it matches a corresponding Destination value defined in a CIPUCMMWRITE trigger defined on the node.
Size
The number of bytes of data that will be sent to the node.
SrcDat
The tag that contains the data that will be sent to the node with the CIPUCMMWRITE.
