The Array Average action calculates the
average value for a range of array elements.

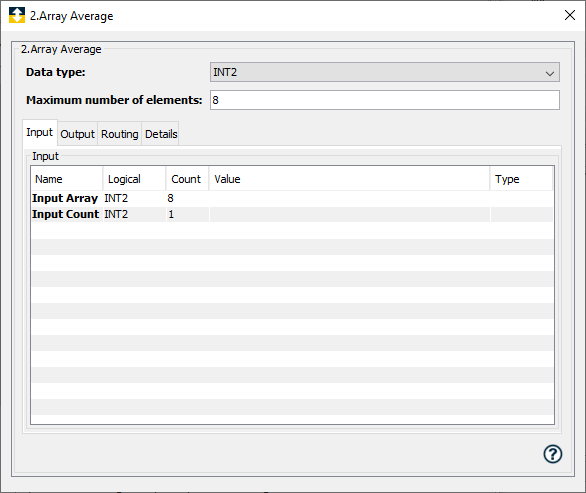

Parameter descriptions
The action provides these parameters:
| Parameter | Description |
|---|---|
| Data type | The list of the available data types
for the node. For example, BYTE, WORD,
DWORD, or INT1, INT2, INT4 and so
forth. |
| Maximum number of elements | The value indicates the maximum number of array elements that can be passed into the array variable. The maximum number of elements can be of any size. |
Input tab
| Parameter | Description |
|---|---|
| Input Array | To calculate the average value from
an array, the array must first be
passed into the action. The starting
element for the average calculation is
entered in the Value
column. The values for Logical and Count columns will change based on the Data type and Maximum number of elements parameters specified in the action definition. |
| Input Count | The Input Count
holds the number of items actually
passed into the action. This number must be less than or equal to the maximum number of elements in the array. If the count exceeds the value in Maximum number of elements, an error will occur at runtime. |

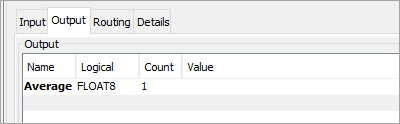

Output tab
| Parameter | Description |
|---|---|
| Average | The calculated average of the array
elements, based on the Input
Array and Input
Count parameters. |
