The Execute Remote SubTrigger action executes a subtrigger defined on another node. This action operates much the same as Execute SubTrigger except the subtrigger executes on a remote node.
A PeerLINK device contains the connection information to the remote node where the subtrigger is defined.

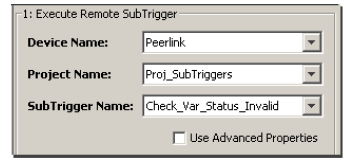

Parameter description
| Parameter | Description |
|---|---|
| Device Name | The PeerLINK device that provides the connection information to a remote node. |
| Project Name | The project on the remote node that contains the subtrigger to execute. |
| SubTrigger Name | The subtrigger on the remote node to
execute. |
| Use Advanced Properties | When selected, this check box
provides an execution timeout
parameter. The Execution Timeout parameter provides a time period in milliseconds to wait for the remote subtrigger to complete its execution. |
