The IF action provides an expression evaluation to either True or False. It is used for an If then Else routing control. The IF action can use any number of logical variables as input on either side of the equation.
Every expression consists of at least two operands and can have one or more operators. Operands are values, whereas operators are symbols that represent particular actions. For example, in the expression X + Y - 10. X, Y, and 10 are operands, and + and - are operators.
The following lists the valid operators.
| Operator | Description |
|---|---|
| + | Addition |
| - | Subtraction |
| * | Multiplication |
| / | Division |
| ^ | Exponentiation (for example: 2^3 = 8) |
| % | Modulus (for example: 5%2 = 1) |
| ( ) | Force precedence of evaluation |
| >> | Bitwise shift right |
| << | Bitwise shift left |
| & | Not implemented as an operator, see the and function below. |
| | | Not implemented as an operator, see the or function below. |
| ^ | Not implemented as an operator, see the xor function below. |
| ~ | Not implemented as an operator, see the not function below. |
The following lists the valid logical operators for conditional operations:
| Logical Operator | Description |
|---|---|
| == | Equal |
| != | Not Equal |
| < | Less Than |
| <= | Less Than or Equal |
| > | Greater Than |
| >= | Greater Than or Equal |
| && | And (for example: x==5&&y==10 returns true if x is 5 and y is 10) |
| || | Or (for example: x==5 || y==10 returns true if x is 5 or y is 10) |
| ! | Not (for example: !(x==5) returns false if x is 5) |
There are also a number of built-in functions that can be used in an expression, such as sin(X) and log(X).

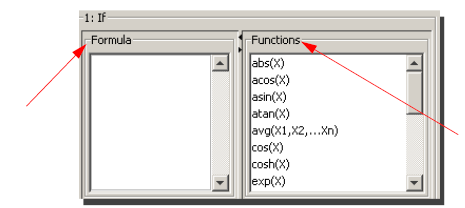

Parameter description
| Input area | Description |
|---|---|

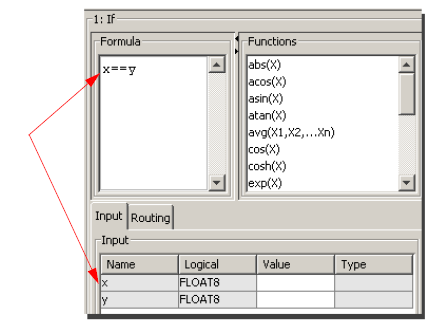

| Formula | Use the Formula box
to type an expression. As you type in the Formula box, the logical variables used in the expression are automatically added to the Input tab. In the example expression, x==y (x is equal to y), the logical variables x and y are added to the input tab. |

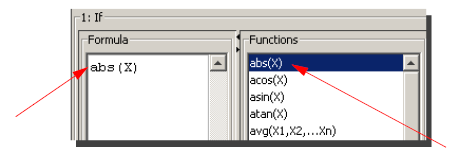

| Functions | Use the Functions
list to add a built-in function to the
formula. To add a built-in function, double-click the function. The function is added to the Formula box. Note that the default input operand to the abs( ) function is X. You can change this to any value you want. When using the trig functions, the angle is specified in radians. For example, sin(1.0) = 0.841471. The 1.0 is equivalent to 1 radian: where 2 pi radians equals 360 degrees |
The following table lists the built-in functions that you can use within an If action.
| Function | Description |
|---|---|
| abs(X) | Absolute value |
| acos(X) | Trigonometric arcosine |
| and(X,Y) | Bitwise AND "&" |
| asin(X) | Trigonometric arcsine |
| atan(X) | Trigonometric arctangent |
| avg(X1, X2...,Xn) | Average of a set of values |
| ceil(X) | Ceiling (round up) |
| cos(X) | Trigonometric cosine |
| cosh(X) | Hyperbolic cosine |
| exp(X) | e to the power X |
| floor(X) | Floor (round down) |
| ln(X) | Natural log (base e) |
| log(X) | Natural log (base e) |
| log10(X) | Log base 10 |
| max(X1, X2...,Xn) | Maximum of a set of values |
| min(X1, X2...,Xn) | Minimum of a set of values |
| not(X) | Bitwise NOT "~" |
| or(X,Y) | Bitwise OR "|" |
| sin(X) | Trigonometric sine |
| sinh(X) | Hyperbolic sine |
| sqrt(X) | Square root |
| sum(X1, X2...,Xn) | Sum of a set of values |
| tan(X) | Trigonometric tangent |
| tanh(X) | Hyperbolic tangent |
| xor(X,Y) | Bitwise XOR "^" |

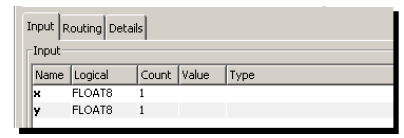

Input tab
| Parameter | Description |
|---|---|
| Name | Each row is a logical variable
automatically created when you type the
expression. For this example, the logical variables x and y where entered in the expression
|

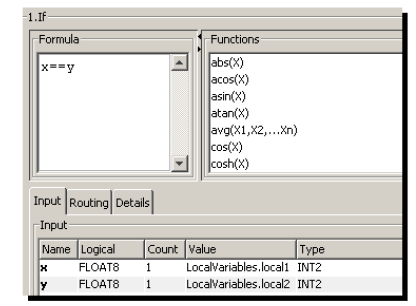

For this example, the completed Input tab will be similar to the following:

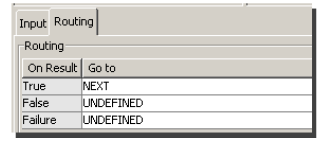

Routing tab
| Parameter | Description |
|---|---|
| True | The route to take when the expression evaluates to True. |
| False | The route to take when the expression evaluates to False. |
| Failure | The route to take if there is a failure. |
