Display

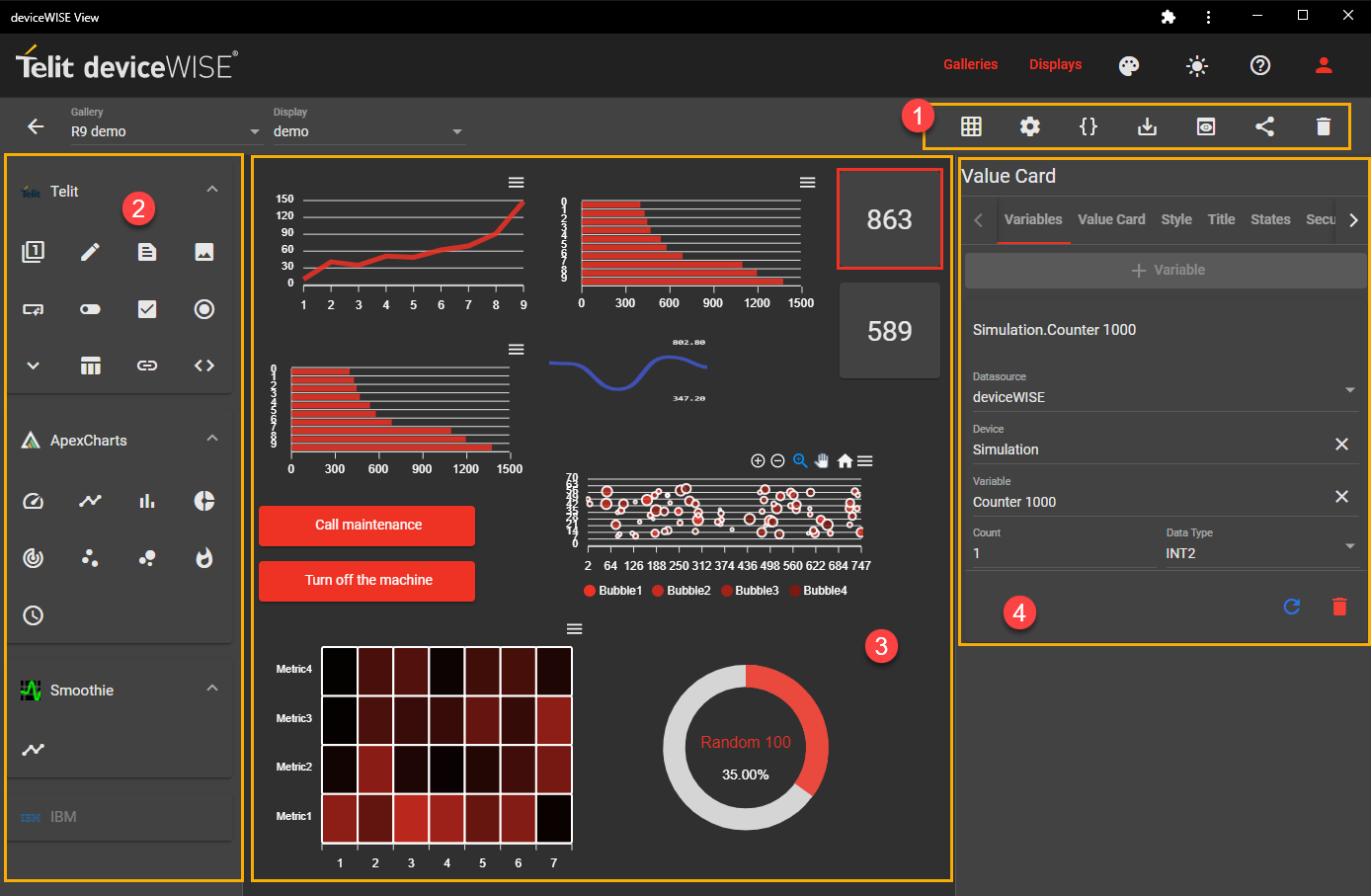

The deviceWISE View display dashboard provides all the necessary tools to design your displays.

  Description

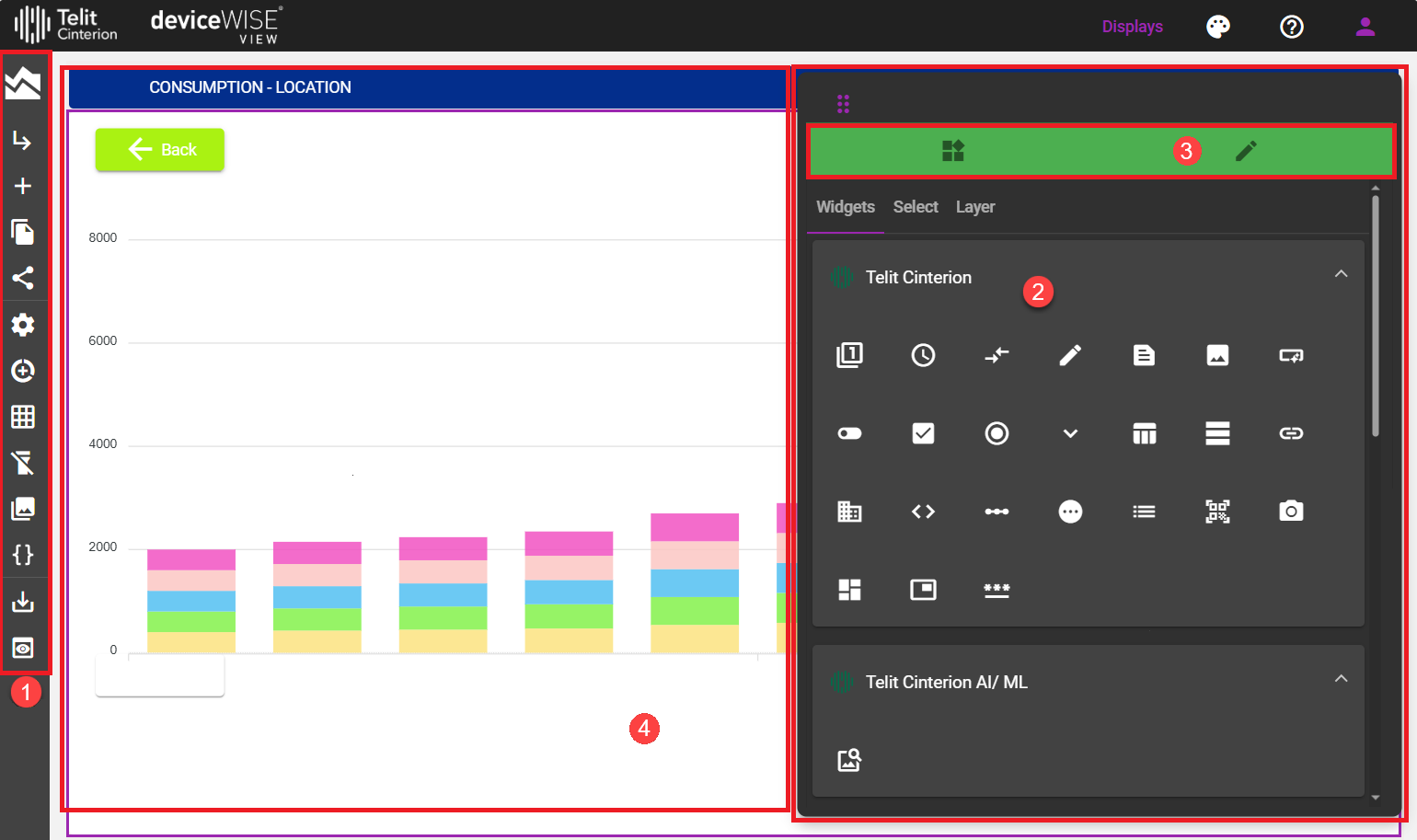

Tools used to model the display.
  • - Goes back to the gallery.
  • - Allows to select other display.
  • - Creates another display.
  • - Duplicates display.
  • - Creates a share link for the display.
  • - Allows you edit the display. For more information on editing the display, see Editing a Display.
  • - Turns Data Publish on and off.
  • - Click to show or hide the Grid in the canvas to help while placing the widget.
  • - Turns the Toggle Widget functionality on and off.
  • - Allows to check the uploaded images or upload new ones.
  • - Allows you add local Variables to a display.
  • - Allows you to save the display.
  • - Allows you the view the display live.
List that shows all the widgets. Displays are created using the widgets. For more information on Widgets, see Widgets.
The Styling Widgets Window. Apart from showing all of the widgets, this hovering menu allows to style them. To switch the type of menu, click the options in green. The boxes represent the list of widgets, the pencil represents the widget styling menu. For more information on styling the widgets, see Styling the Widgets.
You will be able to drag and drop the widgets into the canvas and design your display.

What's Inside

This section contains the following:
