mailbox.check

The mailbox.check command checks for pending method executions.

TR50 Request

{
  "cmd": {
    "command": "mailbox.check",
    "params": {
      "autoComplete": true,
      "limit": 0
    }
  }
}

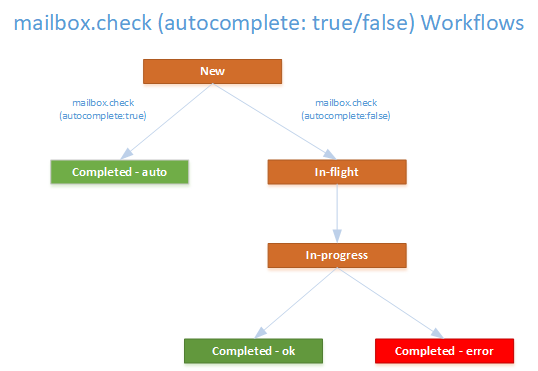

The diagram below shows the status flow while setting the autocomplete:true/false. The autocomplete:true confirms that the message reception is complete.

Request Parameters

Name	Type	Required	Description
autoComplete	Boolean		If the messages returned should be automatically marked as completed. Defaults to false.
limit	Integer		Limits the number of results returned. Defaults to the maximum configured size.

TR50 Response

If the command is sent successfully a success message and the messages are returned. Otherwise, an error and error message will be returned.

{
  "cmd": {
    "success": true,
    "params": {
      "messages": [
        {
          "id": "5321d2fef2057f1fd400000b",
          "thingKey": "mqtt_client",
          "command": "method.exec",
          "params": {
            "method": "testmethod",
            "params": {
              ...
            }
          }
        }
      ]
    }
  }
}

Response Parameters

Name	Type	Description
messages	Array	An array of message objects.

Message Object Parameter

Name	Type	Description
id	String	The object id of the message.
thingKey	String	The thing key the message is related to.
command	String	The command name.
params	Object	The command parameters.
