The Current RSSI widget is used to display RSSI strength according to a Thing's property.

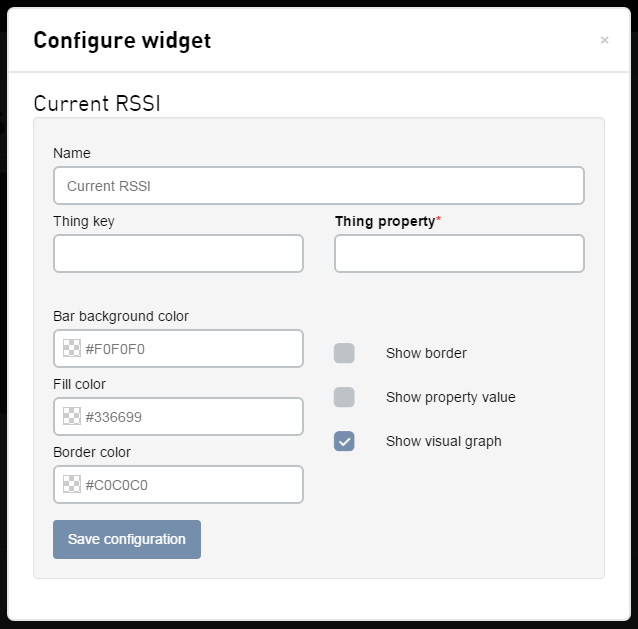

Configuring the widget
| Field | Description |
|---|---|
| Name | The name of the widget, shown at the top of the widget. |
| Thing key | The Thing key this widget should respond to. If left blank, the widget will inherit the Thing key from the dashboard. |
| Thing property | The property this widget should respond to. |
| Bar background color | The color of the RSSI bar when not filled. |
| Fill color | The color of the RSSI bar when filled |
| Border color | The color of the RSSI bar border |
| Show property value | Whether to display the property value. |
| Show visual graph | Whether to show the visual graph. |
| Show border | If the widget should have a border around it. |
Interacting with the widget
- The visual graph is displayed with each bar being filled according to the configured property representing the received signal strength indication.
