The Things per alarm state widget is used to display alarm states and the number of Things that are currently in that alarm state.

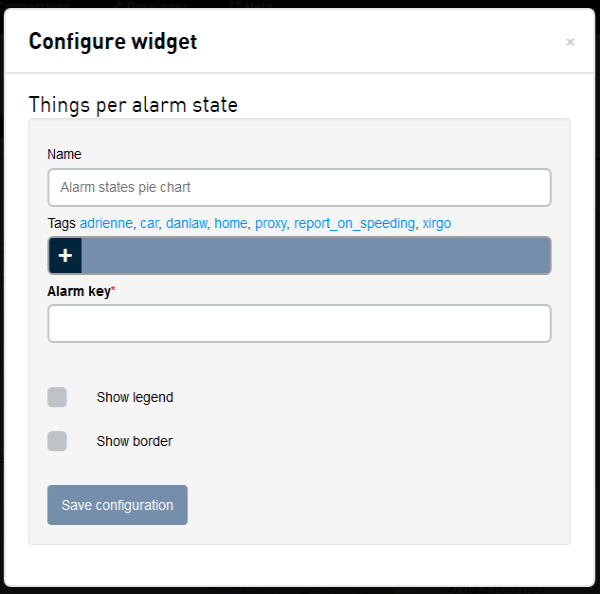

| Field | Description |
|---|---|
| Name | The name of the widget, shown at the top of the widget. |
| Tags | A list of tags used to limit the Things that are used in the pie chart. |
| Alarm key | The key of the alarm to be shown by this widget. |
| Show legend | If a legend should be displayed at the bottom of the pie chart. Clicking on the color in the legend will toggle if that slice is displayed in the chart. |
| Show border | If the widget should have a border around it. |

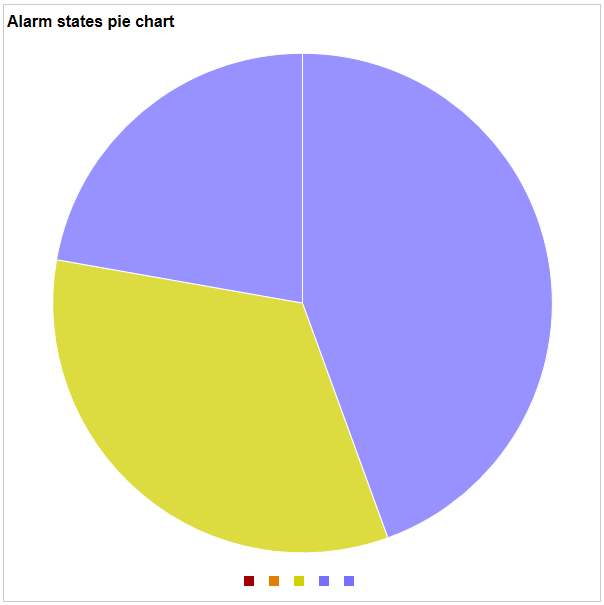

Widget
Interacting with the widget
When you mouse over a slice, the pie chart will highlight that slice and display the name of the alarm state, the number of Things in that state, and the percentage of Things in that alarm state.
If you are displaying the legend, moving the mouse over a color in the legend will highlight that slice. Clicking on the color in the legend will toggle the slice on and off in the chart.
