The aws.lambda.invoke trigger action accepts an AWS Lambda function with the payload and sends it to AWS to get a response.

Action

This trigger action is found under the Third party >> AWS.

Canvas

When dragged onto the canvas, the appearance of the action is a rectangle with two routing points.

The left routing point (red) is the failure route. This route will be taken if there is an error during execution.

The right routing point (green) is the success route. This route will be taken if action executes successfully.

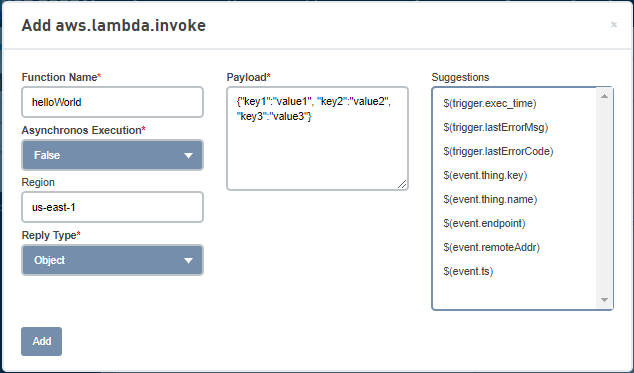

Form

Parameters

Name Type Required Description

Function Name

String Yes

The name of the AWS Lambda function that needs to be invoked.

Asynchronous Execution

bool Yes

By default it is set to False, the function will block until the response is received and then it continues execution.

If set to True, there will be no reply.

Region

String The region of the AWS instance. For example, us-east-1. For more information on Region, see https://docs.aws.amazon.com/general/latest/gr/rande.html
Reply Type Object, String or base64

Reply Type defaults to Object.
The request must return any of the following three types to get processed. The Reply Type drop-down option includes:

  • Object - a JSON object
  • String - a Regular string
  • base64 - a base64 encoded string
Payload JSON object Yes JSON(data blob) that you want to provide to your Lambda function as input.
