dynamic.exec action
The dynamic.exec trigger action is used to invoke a sub trigger.
Action
This trigger action is found under the Trigger heading.
Canvas
When dragged onto the canvas, the appearance of the action is a rectangle with two routing points.
The left routing point (red) is the failure route. This route will be taken if there is an error during execution.
The right routing point (green) is the success route. This route will be taken if action executes successfully.

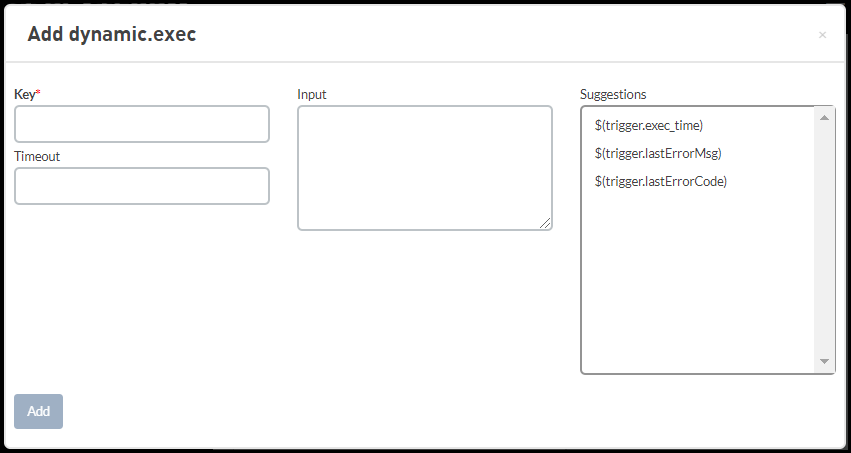

Form
Parameters
Name
|
Type
|
Required
|
Descriptions
|
---|---|---|---|
Key | String | Yes | The key of the dynamic.exec. |
Timeout | String | The amount of time to wait for
the dynamic.exec to execute the
sub-trigger.
If the timeout is omitted, the sub-trigger will be executed as a fire-and-forget trigger. If you want output, a timeout must be specified., |
|
Input | String or JSON | The input must be a string or a JSON object. If invoked with a string, then $(event.input) will be a simple string value, if JSON is passed to the input, then it will be an object. If an object, then JSON like {"value":10} will be accessed as $(event.input.value). |
Key = abc
Input = {"value":10}
A trigger with a dynamic event key = abc is called and the input 10 is passed. For a more detailed example, see object.iterator action.
Action variables
Name
|
Type
|
Description
|
---|---|---|
$(action.X.value) | ANY | The value of return variable. The return value can be of any type(Integer, String or Object). |
