module.remoteat.exec action
The module.remoteat.exec is used to execute an AT command against the module. This command will only work if the module supports remote AT commands. The module can be identified by thingKey, ESN, ICCID, IMEI, IMSI, MEID, or MSISDN. Only one of these identifying fields is required.
Action
This trigger action is found under the Module.
Canvas
When dragged onto the canvas, the appearance of the action is a rectangle with two routing points.
The left routing point (red) is the failure route. This route will be taken if there is an error during execution.
The right routing point (green) is the success route. This route will be taken if action executes successfully.

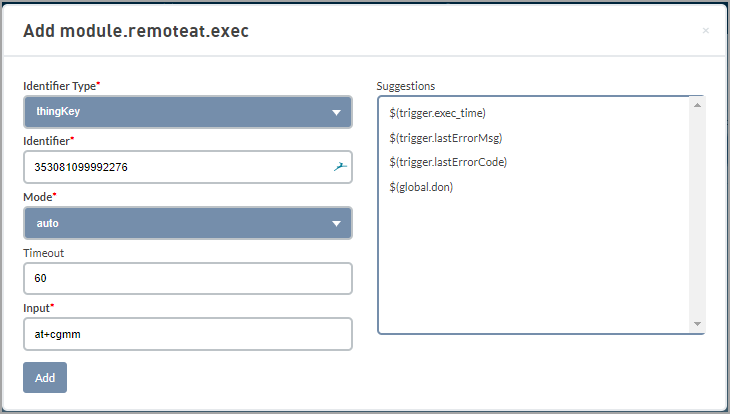

Form
Parameters
Name | Type | Required | Descriptions |
---|---|---|---|
Identifier Type | String | Yes | Select the identifier type you want to provide in the Identifier field. The associated thing should be a module in the inventory and is identified with an identifier associated to the module. |
Identifier | String | Yes | Input the Identifier. Make sure it matches the Identifier Type you selected. For example, you can input thingKey, thingId, ESN, ICCID, IMEI, IMSI, MEID, or MSISDN. |
Mode | String | Yes | The mode to send the command (tr50 or sms or lwm2m). Default is auto |
Timeout | Integer | Time to wait for response from the AT command. Default is 0 which means do not wait for a response. | |
Input | String | Yes | The AT command to send. |
Output variables
Name | Type | Description |
---|---|---|
$(action.X.lines) | String | The resulting array of each line in the output. |
$(action.X.raw) | String | The raw output. |
