When a module establishes a cellular data session with the network and the session is terminated without any data being transmitted is termed as no-data or zero data session. This event is triggered when no data session exceeds the set Percentage of no-data sessions in the Minimum number of sessions for the set Time period.
Form

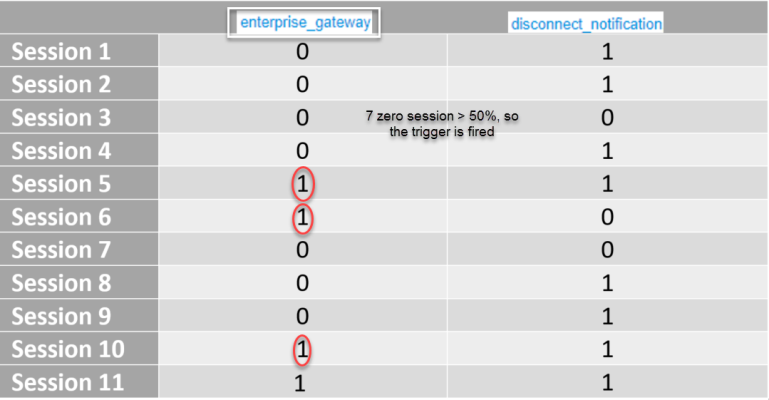

For example: In the above Form the event is triggered, if you have 10 sessions with at least 5 of them with no data in the current billing month. The below table represents the above Form and it contains 7 out 11 ( greater than the required minimum 10 sessions) being no-data sessions as shown. The tagged enterprise_gateway is only considered.
Parameters
|
Name
|
Type
|
Required
|
Description
|
|---|---|---|---|
| Time period | String | Yes |
Month to date - Evaluate the usage of the connection in the current billing month. Last time period - Allows you to specify the "Last period" value to determine the usage of the resource over the defined time period. |
| Percentage of no-data sessions | Integer | Yes | The percentage of no-data sessions within the current billing month. When the percentage is reached the trigger is fired. |
| Minimum number of sessions | Integer | Yes | The Minimum number of sessions to be considered in the set time period. |
| Connection tags | String | Limits the trigger to the connections specified by tags. Leave blank to not limit this trigger to connections specified by tag. When multiple tags are specified in the trigger event, the connection must have at least one tag in common for the trigger to execute. | |
| Carrier | String | Limits the trigger to the connections within the specified carrier. Leave blank to not limit this trigger to connections specified by carrier. For example, AT&T, T-Mobile, Verizon, Vodaphone, Sprint and so on |
Event variables
|
Name
|
Type
|
Description
|
|---|---|---|
| $(event.conn.iccid) | String | The ICCID associated with the connection. |
| $(event.conn.meid) | String | The MEID associated with the connection. |
| $(event.conn.msisdn) | String | The MSISDN associated with the connection. |
| $(event.conn.imei) | String | The IMEI associated with the connection. |
| $(event.conn.imsi) | String | The IMSI associated with the connection. |
| $(event.percentage) | Float | The actual percentage of sessions that have zero data |
| $(event.sessions_without_data) | Integer | The count of session with no data |
| $(event.sessions_with_data) | Integer | The count of session with data |
| $(event.sessions_total) | Integer | The total number of session |
| $(event.ts) | String | The time stamp of the connection status change that initiated this trigger. |
