Galleries

The Galleries is used to manage galleries and displays created with devicewise View.

Functions of this panel include:

  • Listing the galleries and displays within each
  • Importing and Exporting galleries and displays and required dependencies
  • Launching your web browser for creation and editing of galleries and displays.

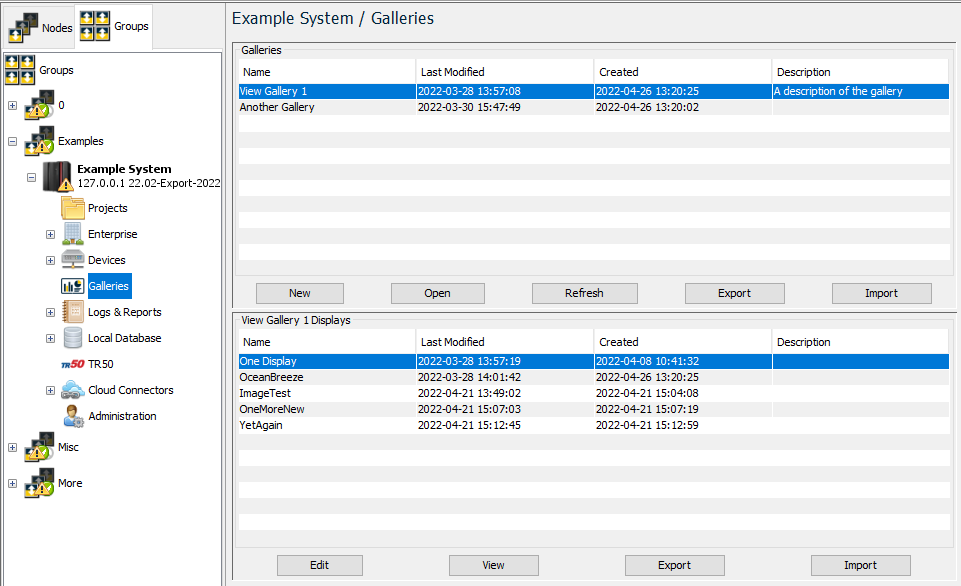

Galleries

The top panel lists the created Galleries. The available actions are:

  • New Launch browser to create new Gallery
  • Open Open Gallery in browser
  • Refresh Refresh the Gallery list
  • Export Export one or more galleries
  • Import Import galleries

Displays

The top panel lists the displays for the (first) selected Gallery. The available actions are:

  • Edit Launch browser to edit existing Display
  • View View Display in browser
  • Export Export one or more displays
  • Import Import displays
When connected to a node via TR50, the options to create/open galleries and edit/view displays will not be available, as the address of the associated URL for the dwView in browser editor cannot be determined. However Import and Export functionality will still be available.

Prerequisites

The information in this section assumes that you have:

  • Activated the appropriate licenses. For more information, see Licenses.
  • Have dwView set up correctly with the web where it resides running.
