azure.service_bus.send action

This trigger action will publish to Microsoft Azure Service bus.

Action

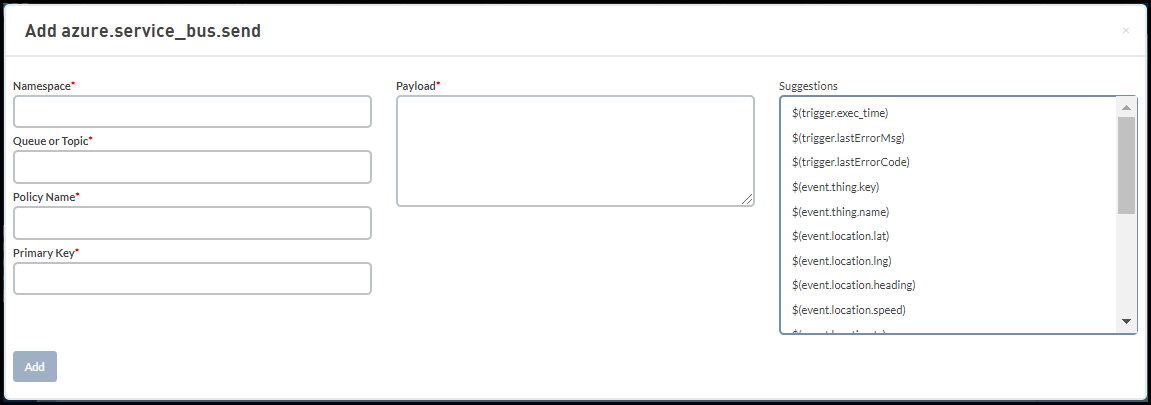

To access the azure.service_bus.send trigger action:

In the Adding trigger screen, under Third Party >> Azure click and drag the azure.servoce_bus.send to the canvas.

When dragged onto the canvas, the appearance of the action is a rectangle with two routing points.

The left routing point (red) is the failure route. This route will be taken if there is an error during execution.

The right routing point (green) is the success route. This route will be taken if action executes successfully.

Name	Type	Required	Description
namespace	String	Yes	The defined namespace for the Service bus object.
Queue or Topic	String	Yes	The defined name for the specific queue or topic to publish. Queue: A queue implements a one way communication where the sender places a message on the queue and a receiver will collect the message soon or sometime in the future. Topic: A topic is similar to a queue except that a message sent to a topic can have a copy of that message forwarded to multiple subscriptions.
policyName	String	Yes	The policy key name to use for authentication.
primaryKey	String	Yes	The secret key to use to authenticate the connection.
payload	String	Yes	A JSON document that you wish to publish to the service bus.
