base64.decode action

base64.decode trigger action accepts a base 64 encoded string and converts it to a binary encoded string.

Action

To access the base64.decode trigger action:

• In the Adding trigger screen, under Binary click and drag the base64.decode to the canvas.

Canvas

When dragged onto the canvas, the appearance of the action is a rectangle with two routing points.

The left routing point (red) is the failure route. This route will be taken if there is an error during execution.

The right routing point (green) is the success route. This route will be taken if action executes successfully.

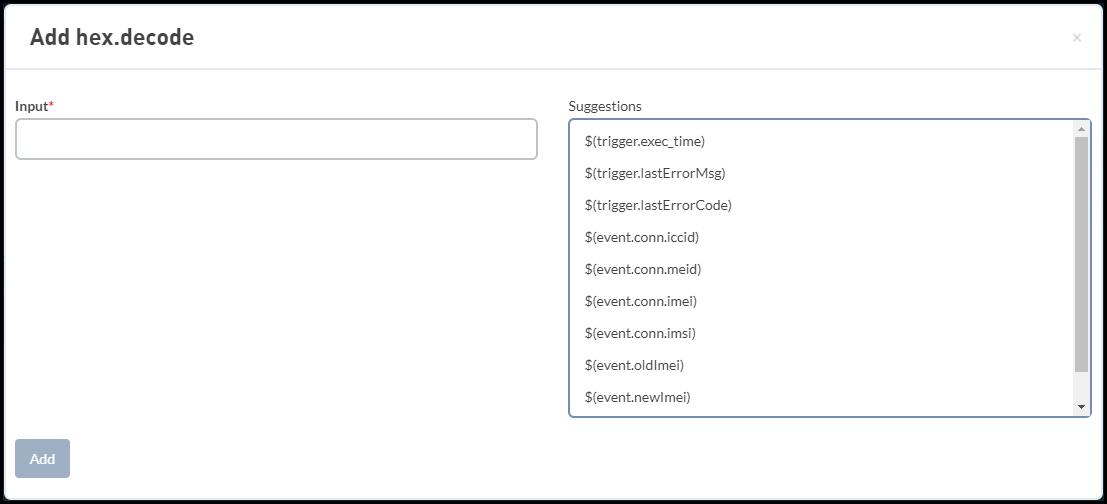

Form

Parameters

Name	Type	Required	Description
Input	String	Yes	The base64 string to be converted.

Action variables

Name	Type	Description
$(action.X.value)	String	The object that is the result of decoding the input.
