hex.encode action

hex.encode trigger action will accept a binary encoded string (ASCII or UTF8 encoded) and converts it to a hexadecimal encoded string.

Action

To access the hex.enode trigger action:

  • In the Adding trigger screen, under Binary click and drag the hex.encode to the canvas.

Canvas

When dragged onto the canvas, the appearance of the action is a rectangle with two routing points.

The left routing point (red) is the failure route. This route will be taken if there is an error during execution.

The right routing point (green) is the success route. This route will be taken if action executes successfully.

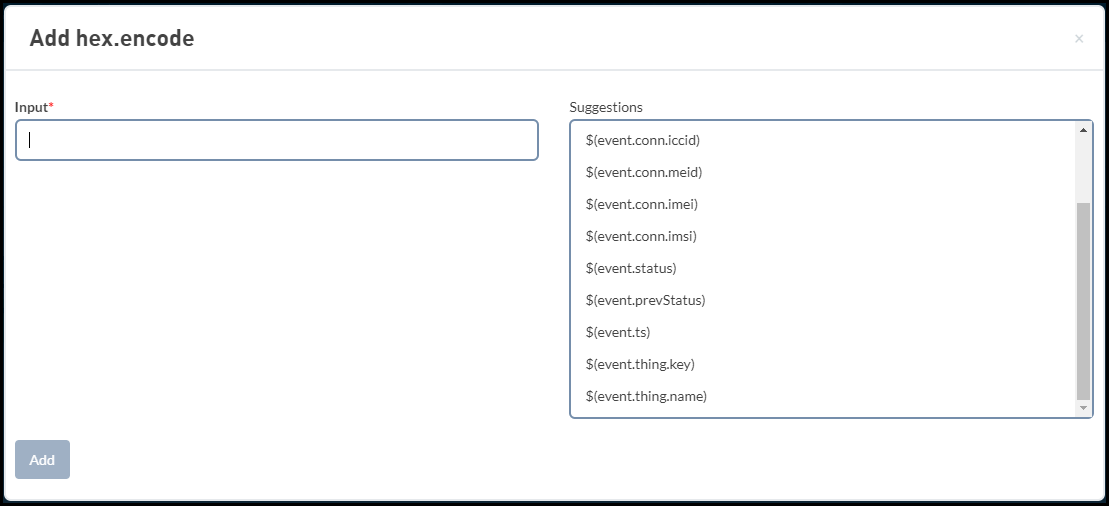

Form

Parameters

Name Type Required Description
Input String Yes The binary string to be converted.

Action variables

Name Type Description
$(action.X.value) String The resulting string from hexadecimal encoding the input object.
